Plastic casing can be removed.
Without plastic casing diameter 51 mm.
| Field text | Data value | Field text | Data value | Field text | Data value | Field text | Data value |
| Voltage | 24 | W | 40 | Revolutions/min | 2000 | A | |

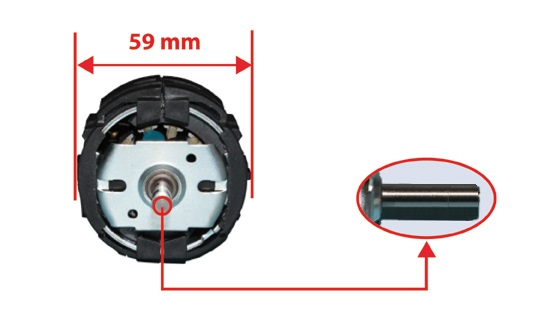

| Type | No./fans | Capacity/m³ | Dia. mm | 51 / 59 | |||

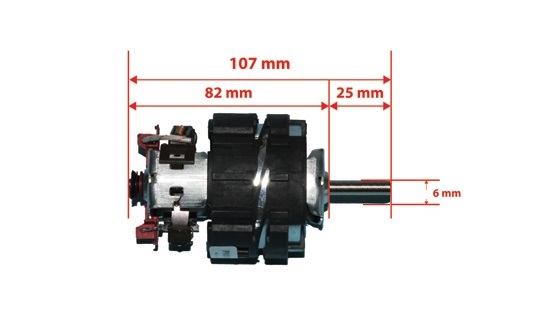

| Length mm | 107 | Fan mounted | Complete w/housing | No./shafts | 1 | ||
| Shaft dia. mm | 6 | Mount. | Dim. mm | 59x107 | Speed | 1-speed | |
| Tightness norm | Drawing | Drawing 2 | Servicing |
|
|
