| Field text | Data value | Field text | Data value | Field text | Data value | Field text | Data value |
| Voltage | 24 | W | Revolutions/min | 2600 | A | ||
| Type | No./fans | Capacity/m³ | Dia. mm | 90 | |||
| Length mm | 107 | Fan mounted | Complete w/housing | No./shafts | 2 | ||
| Shaft dia. mm | 9.52x112 | Mount. | Dim. mm | Speed | 3-speed | ||

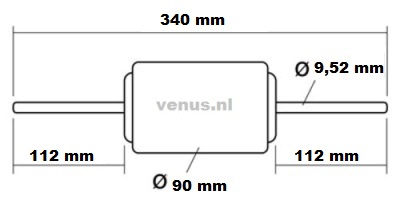

| Tightness norm | Drawing | Drawing 2 | Servicing |
